產品名稱：

ARP840
ARP840
ARP840

產品簡介：

型號: ARP840,

17.3’液晶顯示屏，分辨率1920x1080，支持 Micro atx 主板，提供4個全長擴展槽，多語言鍵盤和觸摸板，1U 600w 電源，提供2 x 5.25’ ，1 x 2.5’盤位 ，超薄 光驅盤位。

  • Features
  • Specifications
  • Environmental Factors
  • Ordering Information

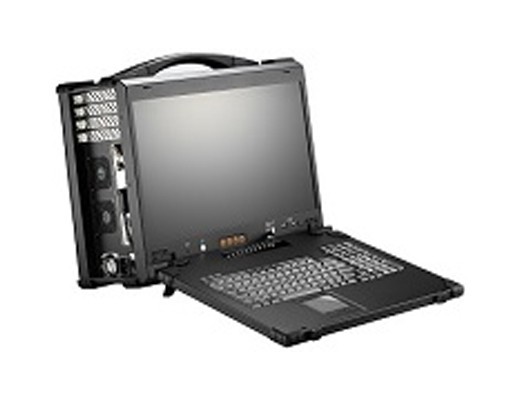

ARP840- Rugged Portable Computer (Micro ATX MB)


Aluminum Construction with shock absorbing rubber corners

17.3' FHD LCD display, 1920x 1080, LED backlight, Option: 17.3', 3840x 2160 resolution

Support Micro ATX Motherboard

Offer 4 full length slots expansion capability

1U, 600W power supply, 100~240VAC

Support 2x 5.25', 1x 2.5' hidden, slim DVD-RW, drive bay

Industrial multi-language Keyboard with touchpad

The keyboard is integrated with the portable computer to protect the screen and easy to carry

Large handle provide convenience transportation of the portable computer with comfort and ease

Trolley case to manage portable PC with ease


Model No

ARP840

Color

Black

Motherboard

Support Micro ATX Motherboard

Slots

Offer 4 full length expansion slots (338.5mm)

Display

17.3' FHD LCD display, 1920x 1080, LED backlight

Option: 17.3', 3840x 2160 resolution

Drive bay

Support 2x 5.25', 1x 2.5' hidden, slim DVD-RW

VGA

AD conversion board, DisplayPort interface (Option DVI or VGA)

KB/MS

Industrial keyboard with touchpad

Option KB: CH,FR,GR, IT,JP,KR, PT,RU, SP, UK, US

Power Supply

1U, 600W, 100~240VAC, Auto switch

Construction

Aluminum Construction with shock absorbing rubber corners

Speaker

Built-in amplified 2x 3W speakers

Dimension

417.6Wx 352Hx 186D mm

Weight

8 kgs

Trolley Case

Padded trolley case with wheels



Operating

Non-Operating

Temperature

0°C~50°C

-20°C~60°C

Relative Humidity

10%~90%

10%~95%




ARP840- Rugged Portable Computer (Micro ATX MB)

Product No.

Description

ARP840-17WUSP

17.3' LCD, 1920x 1080, 4 slots, 2x 5.25', 1x 2.5' hidden, DVD-RW, DP, trolley case

ARP840-17WUSD

17.3' LCD, 1920x 1080, 4 slots, 2x 5.25', 1x 2.5' hidden, DVD-RW, DVI, trolley case

ARP840-17WUS

17.3' LCD, 1920x 1080, 4 slots, 2x 5.25', 1x 2.5' hidden, DVD-RW, VGA, trolley case

Option:

17.3', 3840x 2160 resolution, DP interface

Touch screen (Resistive)

Sunlight readable (1000 nits)

Keyboard layout: CH, FR, GR, KR, RU, SP, UK, US
