產(chǎn)品名稱:


產(chǎn)品簡介:
型號:ARP980
便攜式整機, 帶有17.3' LCD , 1920x 1080, Intel QM87 chipset, Intel Core i5-4400E 2.7GHz處理器,3個PCI/ PCIe 擴展插槽, 2x 8GB, SSD 240GB(可選裝1T), 多國語言鍵盤和觸控板, 1U 400W電源供應(yīng)器, 航空軟包。
- Features
- Specifications
- Environmental Factors
- Ordering Information

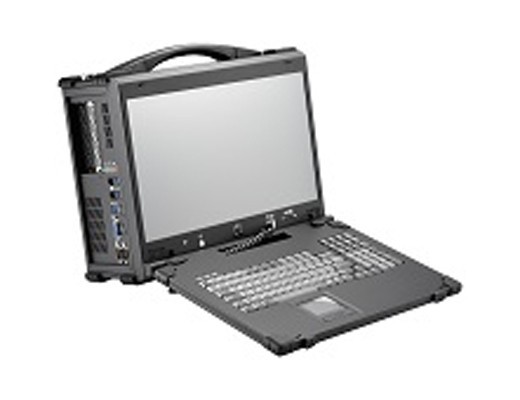

All-in-one design rugged portable computer
Rugged Aluminum Construction with shock absorbing rubber corners
Compact Size Lightweight Design
Built-in 17.3', 1920x 1080 resolution LCD display
Intel Core i5-4400E or i7-4700EQ Processors.
400W power supply
2PCI, 1PCI-E (x16) full-length expansion slots, (Option: 3PCI-E (x16, x1, x1) slots, Option: 3PCI-E (x8, x8, x1) slots)
Built-in SSD 240GB, Support 2x 2.5' removable SATA
Dual Gigabit Ethernet, 2x COM Port
Industrial multi-language Keyboard with touchpad
The keyboard is integrated with the portable computer to protect the screen and easy to carry
Large handle provide convenience transportation of the portable computer with comfort and ease
Trolley case to manage portable PC with ease
Model No | ARP980-17W |
CPU | Intel Core i5-4400E, 2.70GHz Processors Option: Intel Core i7-4700EQ, 2.4 GHz |
Chipset | Intel QM87 PCH Mobile platform |
Slot | 2 PCI, 1PCI-E (x16) full-length expansion slots Option: 3 PCI-E (x16, x1, x1) full-length expansion slots Option: 3 PCI-E (x8, x8, x1) full-length expansion slots |
Display | 17.3' 1920x 1080 LCD Monitor (Option: 17.3', 1600x 900 resoltion) |
Memory | 2x 8GB RAM |
HDD | 1x SSD 240GB, Support 2x 2.5' removable SATA |
CDROM | 1x Slim DVD-RW |
Interfaces | 2x DB9 for COM1, COM2, DVI-D + DVI-I, DP, 4x USB 3.0 connector, 2x USB 2.0 connector 2x Gbit LAN RJ-45, RCA Jack 3x1 for HD audio |
LAN | Intel Clarkville I217LM GbE PHY |
Audio | Intel QM87 built-in HD audio |
KB/MS | industrial multi-languages Keyboard/ touchpad Keyboard layout: CH, FR, GR, JP, KR, RU, UK, US |
Power Supply | 400W, 100~240VAC Power supply |
Speaker | Built-in amplified 2x 3W speakers |
Construction | Rugged Aluminum Construction with shock absorbing rubber corners |
Dimension | 418x 352x 166 mm (Wx Hx D) |
Weight | 7.6 kgs |
Trolley Case | Padded trolley case with wheels |
Operating | Non-Operating | |
Temperature | 0°C~50°C | -20°C~60°C |
Relative Humidity | 10%~90% | 10%~95% |
Product No. | Description |
ARP980-17WUSC | 17.3' FHD LCD, i5-4400E, 2x 8G RAM, 2PCI, PCI-E (x16), 240G SSD, DVD-RW, 400W PSU, trolley case |
ARP980-17WUSD | 17.3' FHD LCD, i5-4400E, 2x 8G RAM, 3 PCI-E (x16, x1, x1), 240G SSD, DVD-RW, 400W PSU, trolley case |
ARP980-17WUSG | 17.3' FHD LCD, i5-4400E, 2x 8G RAM, 3 PCI-E (x8, x8, x1), 240G SSD, DVD-RW, 400W PSU, trolley case |
Keyboard layout: CH, FR, GR, KR, RU, SP, UK, US |
